CreateGroupingByComponent v1

Summary

Creates a GroupingWorkspace where all components matching the search criteria, under a given parent component, are grouped together. These groups are then subdivided by GroupSubdivision

See Also

CreateGroupingWorkspace

Properties

Name	Direction	Type	Default	Description
InstrumentName	Input	string		Name of the instrument to base the GroupingWorkspace on
OutputWorkspace	Output	Workspace	Mandatory	The detector grouping workspace.
ComponentNameIncludes	Input	string		Search String for determining which components should be grouped, such components MUST contain this string
ComponentNameExcludes	Input	string		Search String for determining which components should be grouped, such components MUST NOT contain this string
ExcludeBranches	Input	string		Search String for flagging any components which should not be searched through when looking for the target strings
GroupSubdivision	Input	number	1	Number of subgroups to create for each collection of components. Minimum is 1.

Description

A utility algorithm for grouping detector components together based on repeated component names (i.e. if you wanted to group all the pixels in each module together). Specifically, every component which matches the search conditions will have all its child detectors (excluding monitors) grouped together with the child detectors of the other matching components which are present under the same parent component.

This is best illustrated by example.

You have an instrument that has the following hierarchy Banks -> Module -> Pixels. Let’s say there are two banks called bank1 and bank2. Then each bank is made up of three module named module1, module2 and module3, respectively. Finally each of these module contains 5 detector pixels: pixel1, pixel2, pixel3, pixel4, and pixel5

If you want to create a GroupingWorkspace where each bank forms its own detector group, you can formulate this as grouping together “module” components (using ComponentNameIncludes = "module”). The algorithm will find all the components with names containing the term "module", find their child detectors (in this case, this is a set of 5 pixels per module), and group together all of these child detectors which belong to components appearing under the same parent component (i.e. grouping all detectors belonging to modules which appear under the same parent bank - resulting in a unique grouping for each bank)

In some situations you may have components you do not wish to include in the grouping preset within the instrument tree, which entirely contain the name of the actual component you are looking to match (for example transmission-pixel1 when searching for pixel components).

In these cases you have two options, you can use ComponentNameExcludes or, in some situations ExcludeBranches.

ComponentNameExcludes is used to alter the condition of which components meet the search criteria. When this is set the detectors of components Additionally, entire branches of the Instrument Component Tree can be excluded with ExcludeBranches, no components will be grouped under any parent component with names containing any of the comma separated strings provided here.

Usage

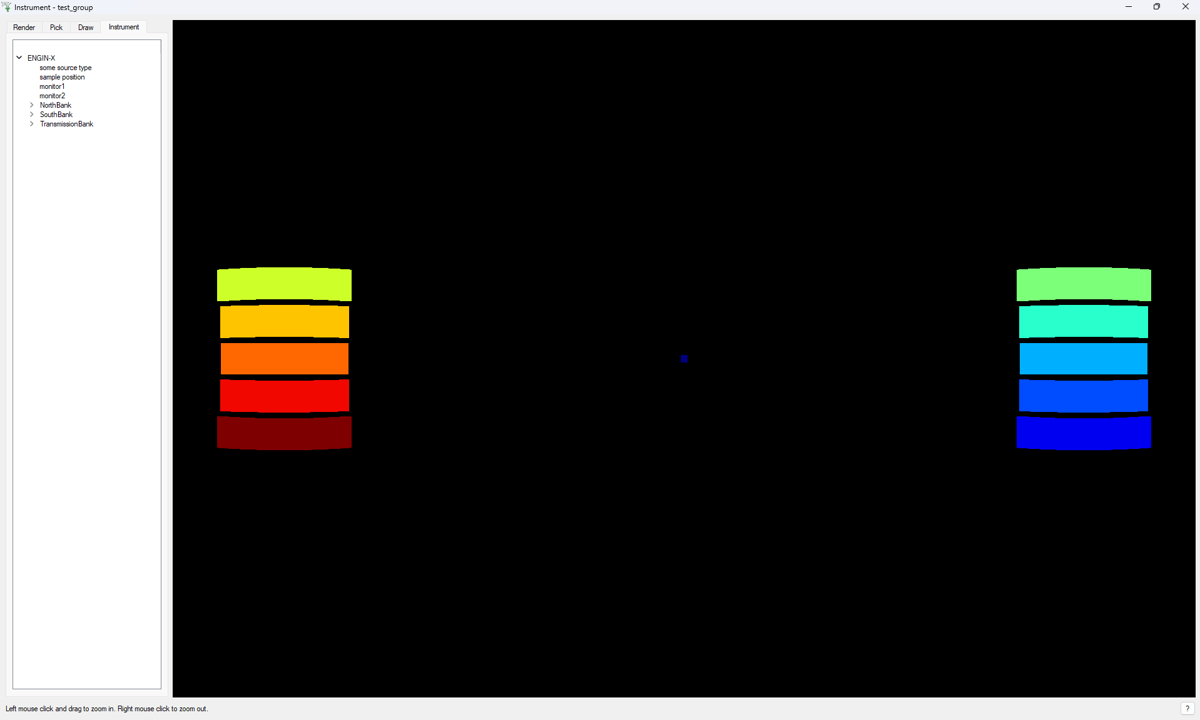

Example: Grouping ENGINX blocks together

from mantid.simpleapi import *
import matplotlib.pyplot as plt
import numpy as np

CreateGroupingByComponent(InstrumentName = "ENGINX",
                          OutputWorkspace = "test_group",
                          ComponentNameIncludes = "block",
                          ComponentNameExcludes = "transmission",
                          GroupSubdivision = 1)

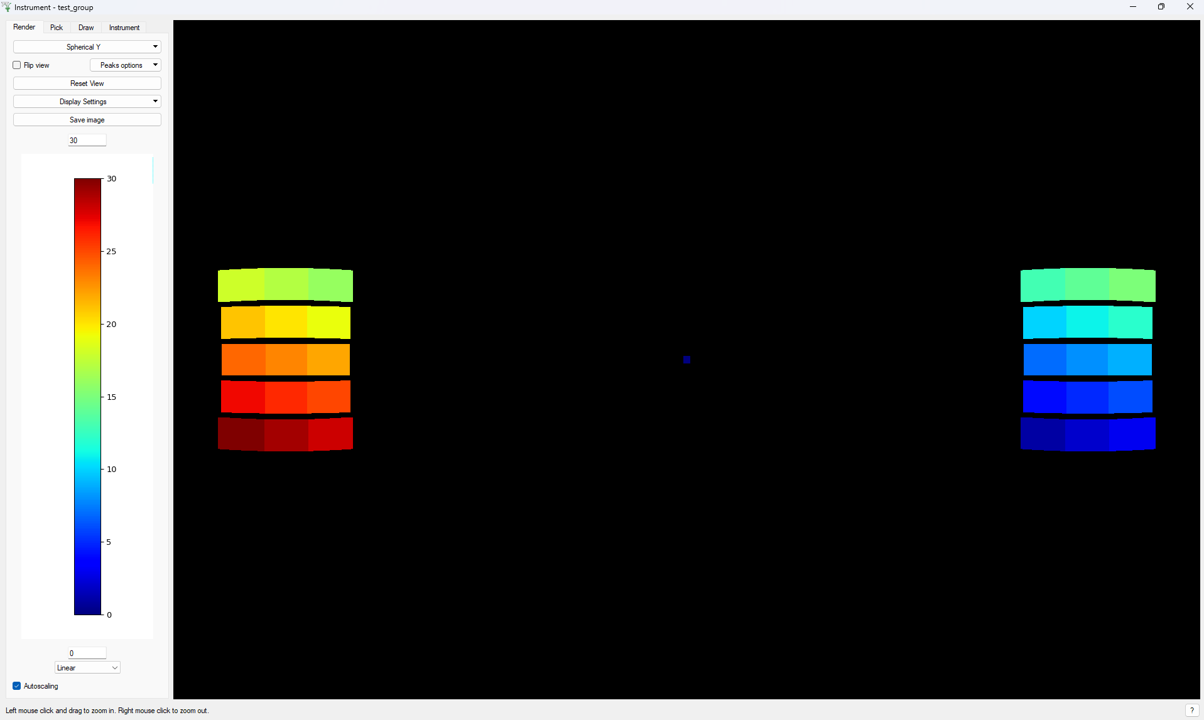

Example: Grouping ENGINX blocks together, then subdividing by 3

from mantid.simpleapi import *
import matplotlib.pyplot as plt
import numpy as np

CreateGroupingByComponent(InstrumentName = "ENGINX",
                          OutputWorkspace = "test_group",
                          ComponentNameIncludes = "block",
                          ComponentNameExcludes = "transmission",
                          GroupSubdivision = 3)

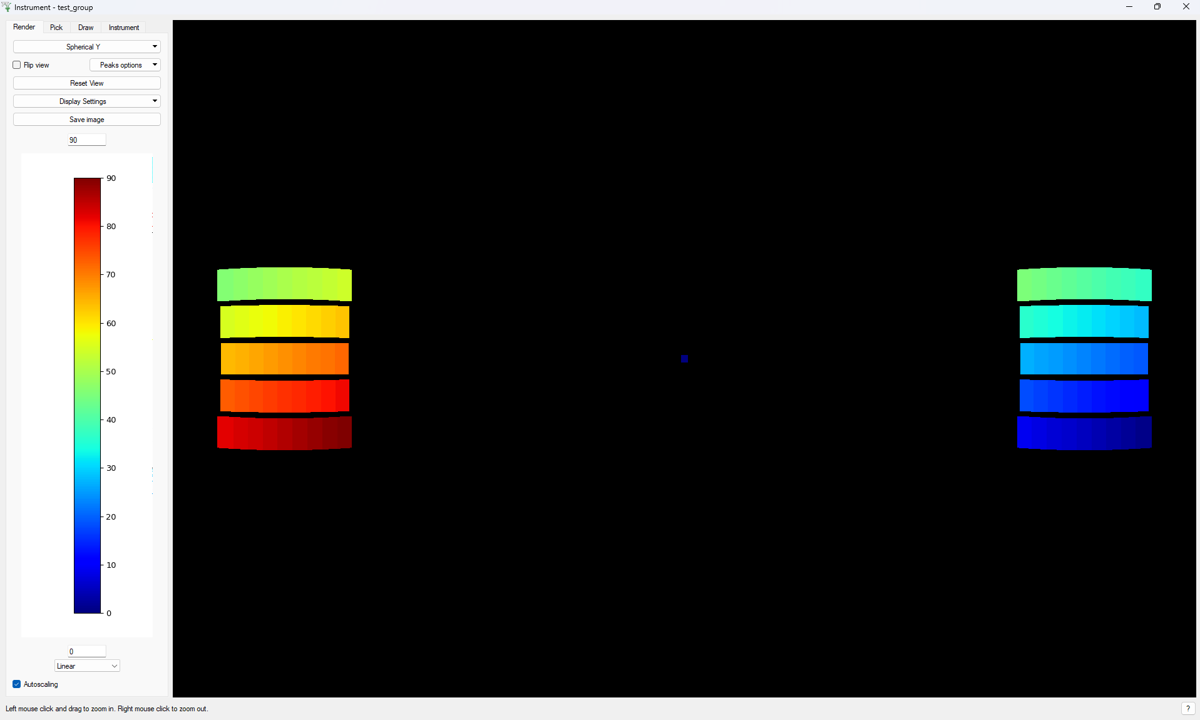

Example: Grouping ENGINX pixels together, excluding transmission-pixels

from mantid.simpleapi import *
import matplotlib.pyplot as plt
import numpy as np

CreateGroupingByComponent(InstrumentName = "ENGINX",
                          OutputWorkspace = "test_group",
                          ComponentNameIncludes = "pixel",
                          ComponentNameExcludes = "transmission",
                          GroupSubdivision = 1)

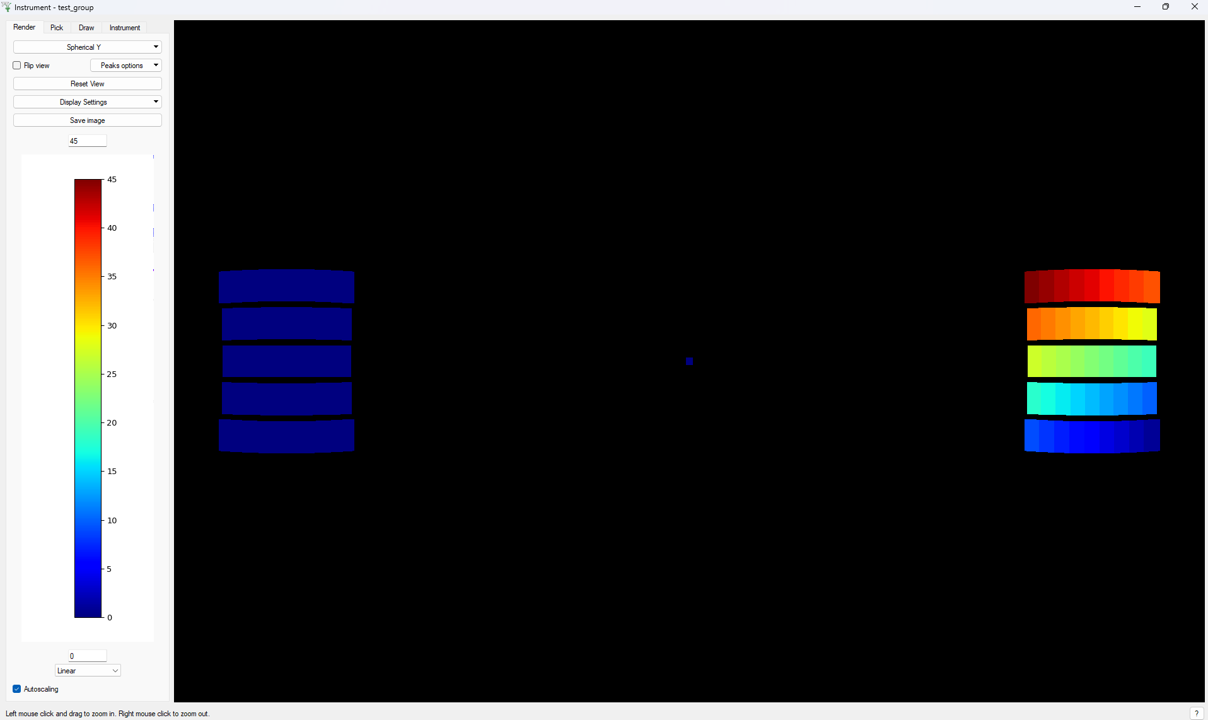

Example: Grouping ENGINX pixels together, excluding the NorthBank and TransmissionBank

from mantid.simpleapi import *
import matplotlib.pyplot as plt
import numpy as np

CreateGroupingByComponent(InstrumentName = "ENGINX",
                          OutputWorkspace = "test_group",
                          ComponentNameIncludes = "pixel",
                          ExcludeBranches = "NorthBank, Transmission",
                          GroupSubdivision = 1)
# note that either the exact string "NorthBank" or substring "Transmission" can be provided as comma separated strings

Categories: AlgorithmIndex | Diffraction\Engineering

Source

Python: CreateGroupingByComponent.py
