AlphaCalc v1

../_images/AlphaCalc-v1_dlg.png

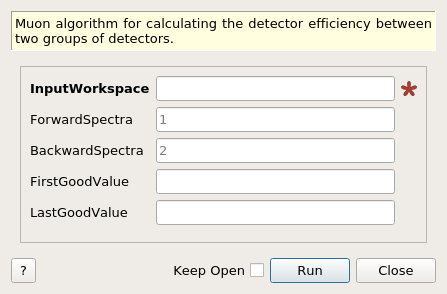

AlphaCalc dialog.

Summary

Muon algorithm for calculating the detector efficiency between two groups of detectors.

Properties

Name Direction Type Default Description
InputWorkspace Input MatrixWorkspace Mandatory Name of the input workspace
ForwardSpectra Input int list 1 The spectra numbers of the forward group (default to 1)
BackwardSpectra Input int list 2 The spectra numbers of the backward group (default to 2)
FirstGoodValue Input number Optional First good value (default lowest value of x)
LastGoodValue Input number Optional Last good value (default highest value of x)
Alpha Output number   The alpha efficiency (default to 1.0)

Description

Returns the relative efficiency of the forward detector group compared to the backward detector group. If Alpha is larger than 1 more counts has been collected in the forward group.

Note

This algorithm leaves the input workspace unchanged. To group detectors in a workspace use MuonGroupDetectors v1.

Usage

Example - Calculating Alpha:

y = [1,1,1,1,1] + [2,2,2,2,2]
x = [1,2,3,4,5,6] * 2
input = CreateWorkspace(x,y, NSpec=2)

alpha = AlphaCalc(input)

print('Alpha value: {0:.3f}'.format(alpha))

Output:

Alpha value: 0.500

Example - Calculating Alpha, reversing forward and backward spectra:

y = [1,1,1,1,1] + [2,2,2,2,2]
x = [1,2,3,4,5,6] * 2
input = CreateWorkspace(x,y, NSpec=2)

alpha = AlphaCalc(input,
                  ForwardSpectra=[2],
                  BackwardSpectra=[1])

print('Alpha value: {0:.3f}'.format(alpha))

Output:

Alpha value: 2.000

Categories: AlgorithmIndex | Muon

Source

C++ header: AlphaCalc.h (last modified: 2021-03-31)

C++ source: AlphaCalc.cpp (last modified: 2021-03-31)
