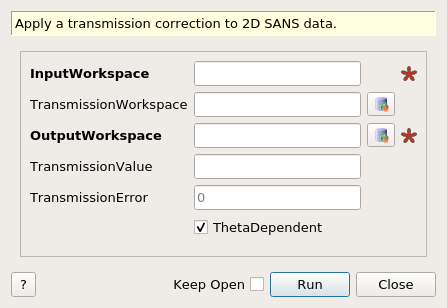

ApplyTransmissionCorrection dialog.
Table of Contents
| Name | Direction | Type | Default | Description |
|---|---|---|---|---|
| InputWorkspace | Input | MatrixWorkspace | Mandatory | Workspace to apply the transmission correction to |
| TransmissionWorkspace | Output | MatrixWorkspace | Workspace containing the transmission values [optional] | |
| OutputWorkspace | Output | MatrixWorkspace | Mandatory | Workspace to store the corrected data in |
| TransmissionValue | Input | number | Optional | Transmission value to apply to all wavelengths. If specified, TransmissionWorkspace will not be used. |
| TransmissionError | Input | number | 0 | The error on the transmission value (default 0.0) |
| ThetaDependent | Input | boolean | True | If true, a theta-dependent transmission correction will be applied. |
The transmission can be given as a MatrixWorkspace or given directly as numbers. One or the other method must be used.
See SANS Reduction documentation for details.
Categories: AlgorithmIndex | SANS | CorrectionFunctions\TransmissionCorrections
C++ header: ApplyTransmissionCorrection.h (last modified: 2021-03-31)
C++ source: ApplyTransmissionCorrection.cpp (last modified: 2021-03-31)
