CorelliCalibrationApply v1¶

Summary¶

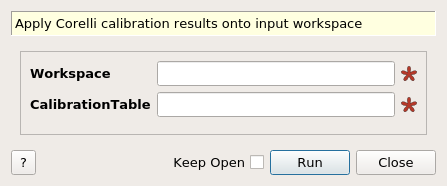

Apply Corelli calibration results onto input workspace

Properties¶

Description¶

Update the CORELLI instrument geometry with calibration data stored in a predefined calibration table workspace. The current inputs are:

• Workspace: EventWorkspace generated from CORELLI instrument
• CalibrationTable: TableWorkspace with predefined layout.

The calibration table must have the following columns

• ComponentName: name of each component in the CORELLI instrument
• Xposition, Yposition, Zposition: these three columns specify the absolute translation in the calibration for each component
• XdirectionCosine, YdirectionCosine, ZdirectionCosine: these three columns specify the rotation axis (direction cosione) for each component
• RotationAngle: the absolute rotation angle in degrees for each component

Applying the calibration involves the following steps:

• translate each component by (Xposition, Yposition, Zposition)
• rotate each component by RotationAngle degrees around rotation axis (directionCosine, YdirectionCosine, ZdirectionCosine)

Usage¶

• Example - move bank42 (perpendicular to x-axis) 180 around y-axis

# import mantid algorithms, numpy and matplotlib
from mantid.simpleapi import *
import matplotlib.pyplot as plt
import numpy as np

# setting up a mocked calibration table
calitable = CreateEmptyTableWorkspace()

headers = [
    "ComponentName",
    "Xposition", "Yposition", "Zposition",
    "XdirectionCosine", "YdirectionCosine", "ZdirectionCosine", "RotationAngle",
    ]
datatypes = ["str"] + ["double"]*7

for dt, hd in zip(datatypes, headers):
    calitable.addColumn(dt, hd)

calitable.addRow(["bank42/sixteenpack", 0., 0, 0., 0,1,0,180])  # move to (0,0,0) and rotate to (0,1,0)@180degree

# laod emptry instrument
ws_original = LoadEmptyInstrument("CORELLI_Definition.xml")
ws_calibrated = ConvertToEventWorkspace(ws_original)

# apply the calibration to ws
CorelliCalibrationApply(ws_calibrated, calitable)  # in-place operation

The original instrument view

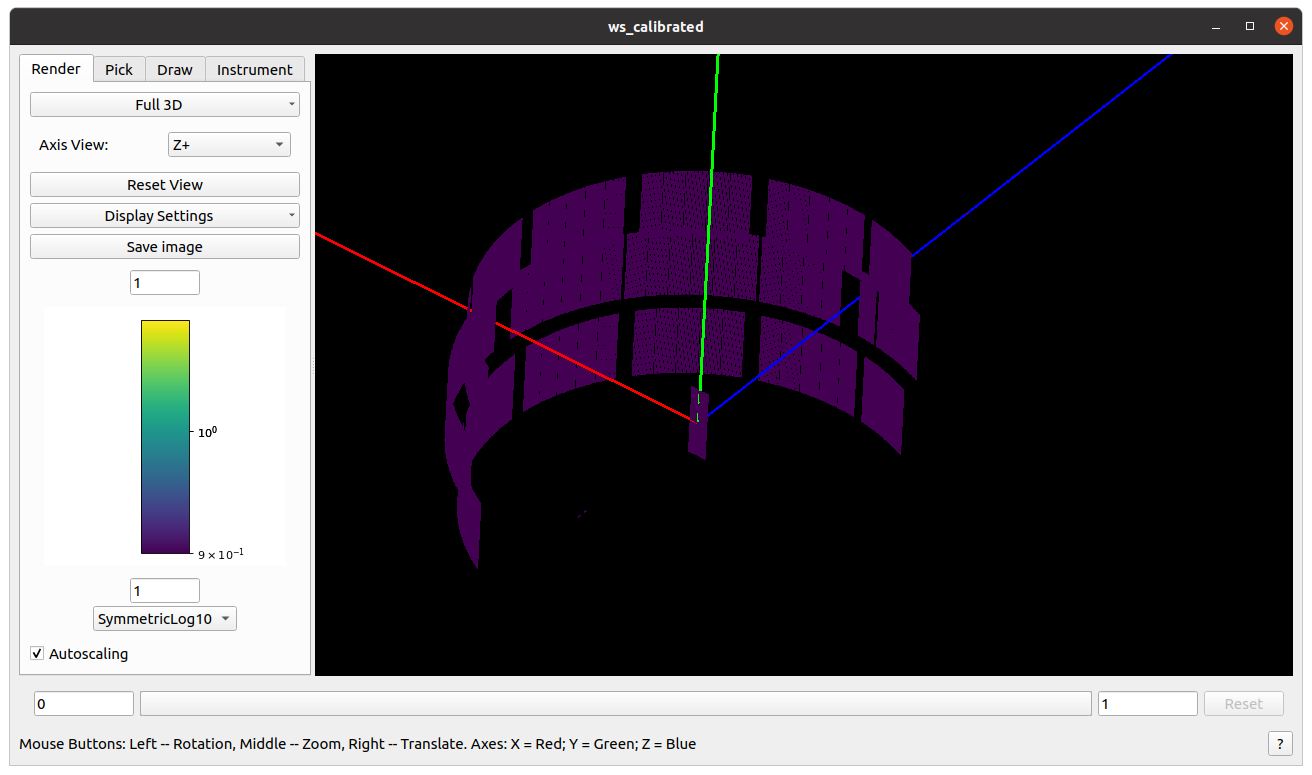

and the calibrated instrument view (notice one panel is moved to the center and rotate to (0,1,0)@180 degree)

Categories: AlgorithmIndex | Diffraction\Calibration

Source¶

C++ header: CorelliCalibrationApply.h (last modified: 2021-03-31)

C++ source: CorelliCalibrationApply.cpp (last modified: 2021-03-31)
