FilterPeaks v1

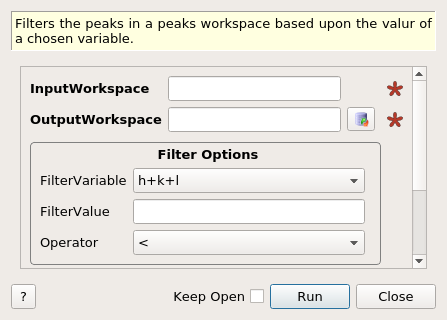

../_images/FilterPeaks-v1_dlg.png

FilterPeaks dialog.

Summary

Filters the peaks in a peaks workspace based upon the valur of a chosen variable.

Properties

Name Direction Type Default Description
InputWorkspace Input IPeaksWorkspace Mandatory The input workspace
OutputWorkspace Output IPeaksWorkspace Mandatory The filtered workspace
FilterVariable Input string h+k+l The variable on which to filter the peaks. Allowed values: [‘h+k+l’, ‘h^2+k^2+l^2’, ‘Intensity’, ‘Signal/Noise’, ‘QMod’, ‘Wavelength’, ‘DSpacing’, ‘TOF’, ‘RunNumber’]
FilterValue Input number Optional The value of the FilterVariable to compare each peak to
Operator Input string < Allowed values: [‘<’, ‘>’, ‘=’, ‘!=’, ‘<=’, ‘>=’]
Criterion Input string = Allowed values: [‘=’, ‘!=’]
BankName Input string   Selected bank name, empty means skip selection. Applicable only to PeaksWorkspace

Description

Filters a PeaksWorkspace using a set number of queries. Outputs a filtered PeaksWorkspace.

Categories: AlgorithmIndex | Crystal\Peaks

Source

C++ header: FilterPeaks.h (last modified: 2021-03-31)

C++ source: FilterPeaks.cpp (last modified: 2021-04-01)
