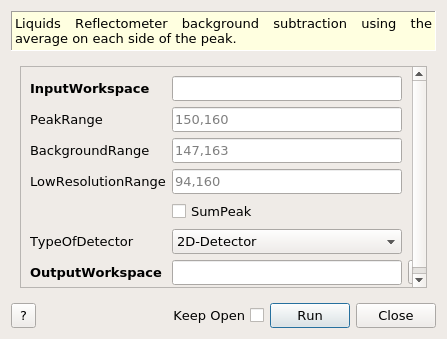

LRSubtractAverageBackground dialog.
Table of Contents
| Name | Direction | Type | Default | Description |
|---|---|---|---|---|
| InputWorkspace | Input | Workspace | Mandatory | The workspace to check. |
| PeakRange | Input | long list | 150,160 | Pixel range defining the reflectivity peak |
| BackgroundRange | Input | long list | 147,163 | Pixel range defining the outer range of the background on each side of the peak |
| LowResolutionRange | Input | long list | 94,160 | Pixel range defining the low-resolution axis to integrate over |
| SumPeak | Input | boolean | False | If True, the resulting peak will be summed |
| TypeOfDetector | Input | string | 2D-Detector | The type of detector used. Allowed values: [‘2D-Detector’, ‘LinearDetector’] |
| OutputWorkspace | Output | Workspace | Mandatory | The workspace to check. |
Used in the Liquids Reflectometer reduction at the SNS, this algorithm compute and subtracts the background from the reflectivity peak.
Categories: AlgorithmIndex | Reflectometry\SNS
Python: LRSubtractAverageBackground.py (last modified: 2020-03-27)
