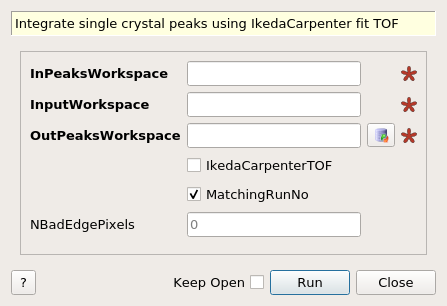

PeakIntegration dialog.
Table of Contents
| Name | Direction | Type | Default | Description |
|---|---|---|---|---|
| InPeaksWorkspace | Input | PeaksWorkspace | Mandatory | Name of the peaks workspace. |
| InputWorkspace | Input | MatrixWorkspace | Mandatory | A 2D workspace with X values of time of flight |
| OutPeaksWorkspace | Output | PeaksWorkspace | Mandatory | Name of the output peaks workspace with integrated intensities. |
| IkedaCarpenterTOF | Input | boolean | False | Integrate TOF using IkedaCarpenter fit. Default is false which is best for corrected data. |
| MatchingRunNo | Input | boolean | True | Integrate only peaks where run number of peak matches run number of sample. Default is true. |
| NBadEdgePixels | Input | number | 0 | Number of bad Edge Pixels |
Integrate and calculate error of integration of each peak from single crystal data and place results into peak workspace. Uses IkedaCarpenter function to fit TOF.
Categories: AlgorithmIndex | Crystal\Integration
C++ header: PeakIntegration.h (last modified: 2021-03-31)
C++ source: PeakIntegration.cpp (last modified: 2021-03-31)
