SaveIsawQvector v1¶

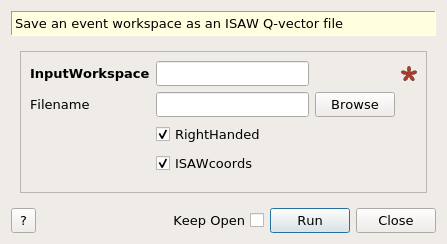

../_images/SaveIsawQvector-v1_dlg.png

SaveIsawQvector dialog.

Table of Contents

Summary
Properties
Description
Source

Summary ¶

Save an event workspace as an ISAW Q-vector file

Properties ¶

Name	Direction	Type	Default	Description
InputWorkspace	Input	EventWorkspace	Mandatory	An input EventWorkspace with units along X-axis and defined instrument with defined sample
Filename	Input	string		Optional path to an hkl file to save. Vectors returned if no file requested. Allowed extensions: [‘.bin’]
RightHanded	Input	boolean	True	Save the Q-vector as k_f - k_i
ISAWcoords	Input	boolean	True	Save the Q-vector with y gravitationally up and x pointing downstream
Qx_vector	Output	dbl list		The name of the vector in which to store the list of Qx
Qy_vector	Output	dbl list		The name of the vector in which to store the list of Qy
Qz_vector	Output	dbl list		The name of the vector in which to store the list of Qz

Description ¶

This takes an unprocessed event workspace and writes out a file where each event has the \((Q_x, Q_y, Q_z)\) as a set of 32-bit floats.

Categories: AlgorithmIndex | DataHandling\Isaw

Source ¶

C++ header: SaveIsawQvector.h (last modified: 2021-03-31)

C++ source: SaveIsawQvector.cpp (last modified: 2021-03-31)
