MuMinusExpTF

Description

A relatxation function for negative muons in Traverse field.

\[N(t)=N_0e^{-frac{t}{\tau}}\left(1+Ae^{-\lambda t}\cos(2\pi\nu t + \phi)\right)\]

where,

\(N_O\) is the count at \(t=0\) ,

\(\tau\) is the muon decay life time,

\(A\) is the relative amplitude of the oscillatory term,

\(\lambda\) (MHz) is the relaxation rateo f the oscillatory term,

\(\nu\) is the oscillating frequency,

and \(\phi\) is the phase.

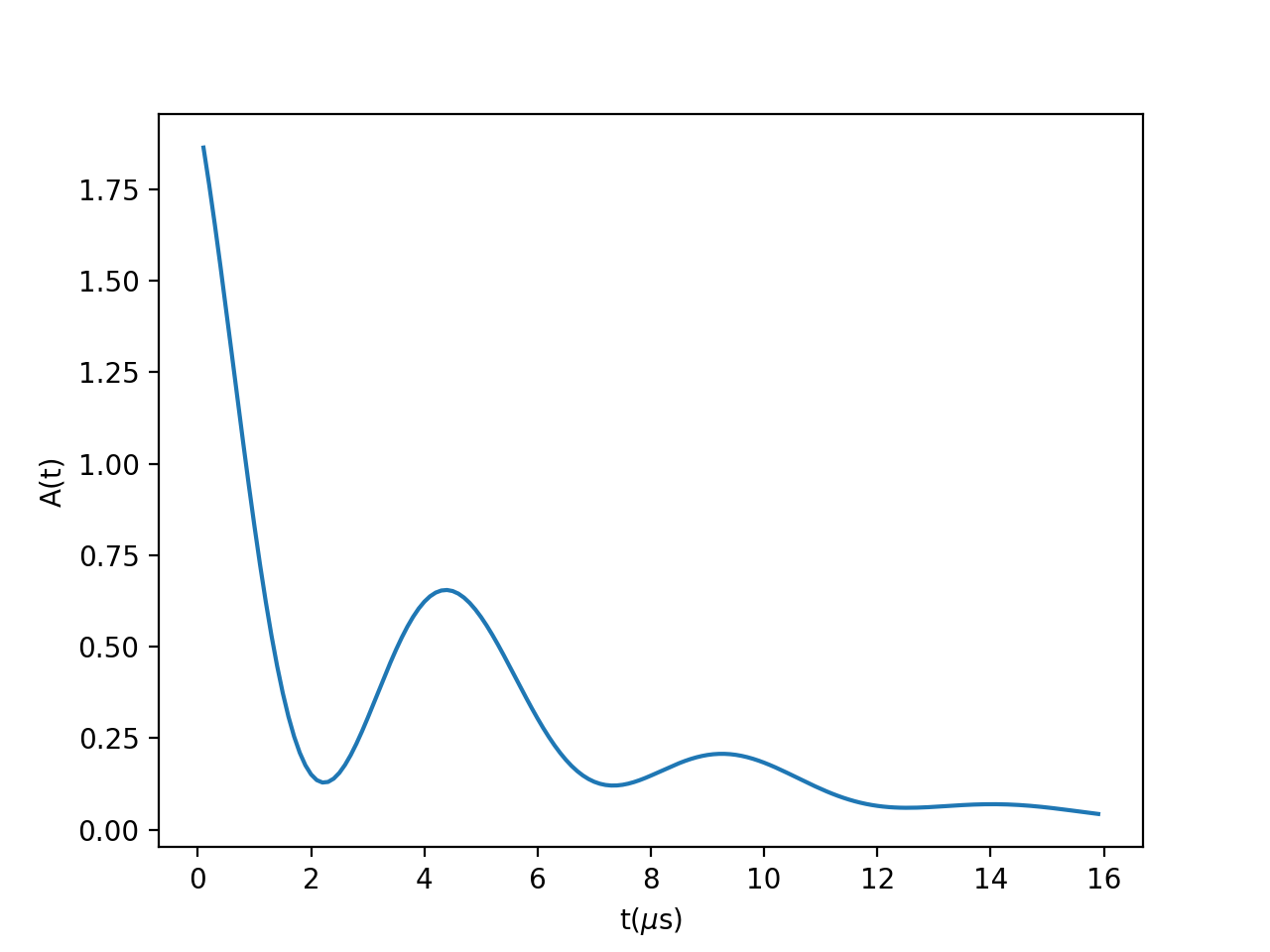

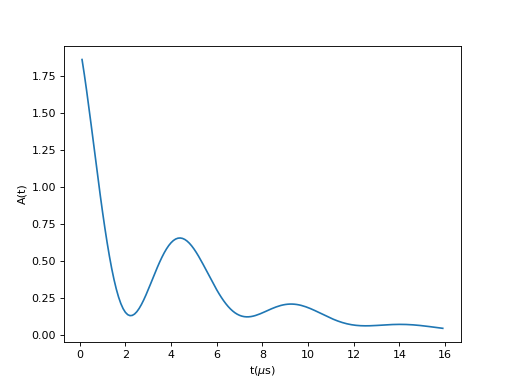

(Source code, png, hires.png, pdf)

../../_images/MuMinusExpTF-1.png

Properties (fitting parameters)

Name Default Description
A 1.0
Lambda 0.1 Decay rate of oscillating term
N0 1.0
Tau 5.0
Phi 0.3 Phase
Nu 0.2 Oscillating frequency (MHz)

Source

Python: MuMinusExpTF.py (last modified: 2020-03-20)
